One of the first things I set up with the REAPER MCP integration was a coherent color scheme across all 9 tracks. Here’s the full procedure — what works, what doesn’t, and how to keep the TCP and mixer in sync.

Prerequisites

  • REAPER is open
  • reapy server is running inside REAPER (port 2306 — starts automatically if you have the reapy REAPER extension installed)
  • Python environment: ~/claude/reaper-mcp with uv

Run all snippets from that directory:

cd ~/claude/reaper-mcp
uv run python3 -c "..."

Check track order first

Colors are applied by index (0-based). Always verify the order before running the color script — tracks may have been reordered since the session was created:

import reapy
reapy.connect()
p = reapy.Project()
for i, t in enumerate(p.tracks):
    print(i, t.name.strip())

Confirm the output matches the order you expect before proceeding.

Before and after

Without colors, all mixer channels look identical. At a glance you can’t tell which strip is which, especially once you’re deep in a session.

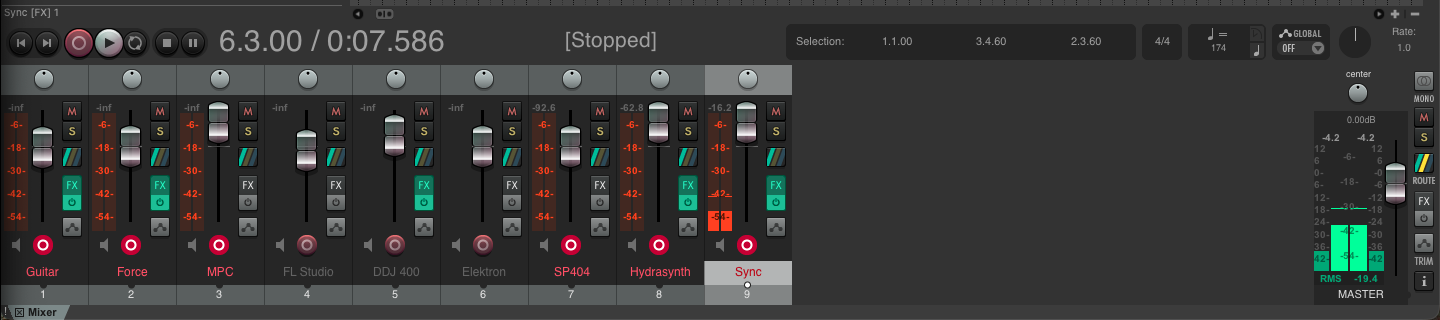

Before: Mixer with no track colors

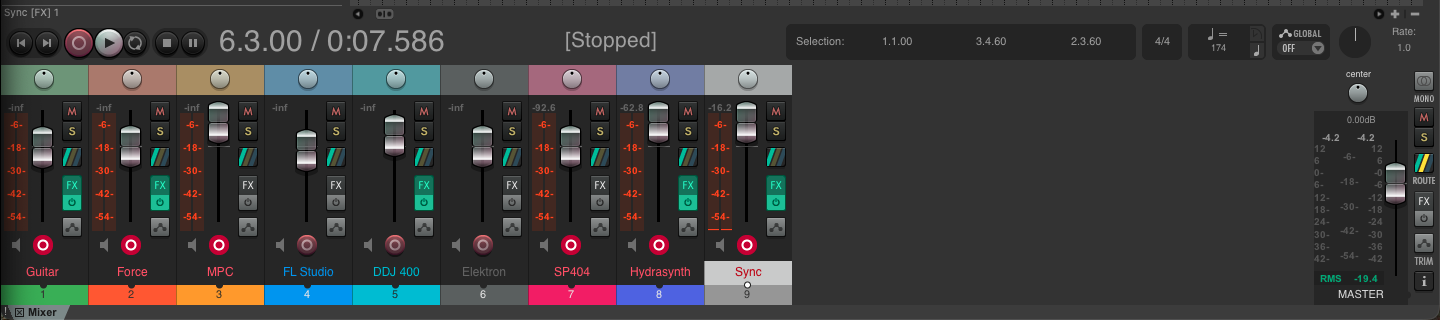

After: Mixer with color scheme applied

Each track now has a color band at the top of its mixer strip and a colored number tab at the bottom. The TCP (track list on the left) gets the same color as a full background fill.

The sync problem

REAPER has two views that both display track colors:

  • TCP — the track control panel (left side of the arrange view)
  • MCP — the mixer control panel

They’re driven by the same underlying data (I_CUSTOMCOLOR) but don’t always redraw together when colors are set via the API. Calling update_arrange() only refreshes the arrange view. To get both in sync you need two extra calls:

rpr.TrackList_AdjustWindows(True)   # redraws TCP
rpr.ThemeLayout_RefreshAll()         # redraws MCP / mixer

Without ThemeLayout_RefreshAll(), the mixer strips stay grey even though the color is stored correctly.

The wrong encoding

The first attempt used manual bit-packing:

# WRONG on macOS — swaps R and B channels
t.set_info_value('I_CUSTOMCOLOR', r | (g << 8) | (b << 16) | 0x1000000)

On macOS, I_CUSTOMCOLOR expects (r << 16) | (g << 8) | b | 0x1000000. Getting this wrong produces wrong hues — teal becomes yellow, pink becomes purple.

The correct approach

Use SetTrackColor with ColorToNative to handle the platform encoding, then force both panels to redraw:

import reapy

reapy.connect()
p  = reapy.Project()
rpr = reapy.reascript_api

colors = [
    ( 76, 175,  80),  # Guitar      — green
    (255,  87,  34),  # Force       — deep orange
    (255, 152,   0),  # MPC         — amber
    ( 33, 150, 243),  # FL Studio   — blue
    (  0, 188, 212),  # DDJ 400     — teal
    (  0,   0,   0),  # Elektron    — black
    (233,  30,  99),  # SP404       — pink
    ( 80, 100, 230),  # Hydrasynth  — indigo
    (150, 150, 150),  # Sync        — grey
]

for idx, (r, g, b) in enumerate(colors):
    rpr.SetTrackColor(p.tracks[idx].id, rpr.ColorToNative(r, g, b))

rpr.TrackList_AdjustWindows(True)
rpr.ThemeLayout_RefreshAll()

ColorToNative(r, g, b) does the platform-specific conversion. SetTrackColor sets both the custom color and enables the custom color flag in one call — no need to manually OR in 0x1000000.

Color grouping logic

Colors are grouped by instrument family so related tracks cluster visually:

Track Instrument Family Color
Guitar Live → Axe-FX Live Green
Force Akai Force Groove box Deep orange
MPC Akai MPC Sampler Amber
FL Studio DAW via ADAT Software Blue
DDJ 400 DJ controller DJ Teal
Elektron Digitakt / Syntakt Drum machine Black
SP404 Roland SP-404 Sampler Pink
Hydrasynth ASM Hydrasynth Synth Indigo
Sync Click / MIDI clock Utility Grey

Samplers stay warm (orange → amber → pink), synths stay cool (indigo, black), and the utility track is neutral so it never draws the eye accidentally.
